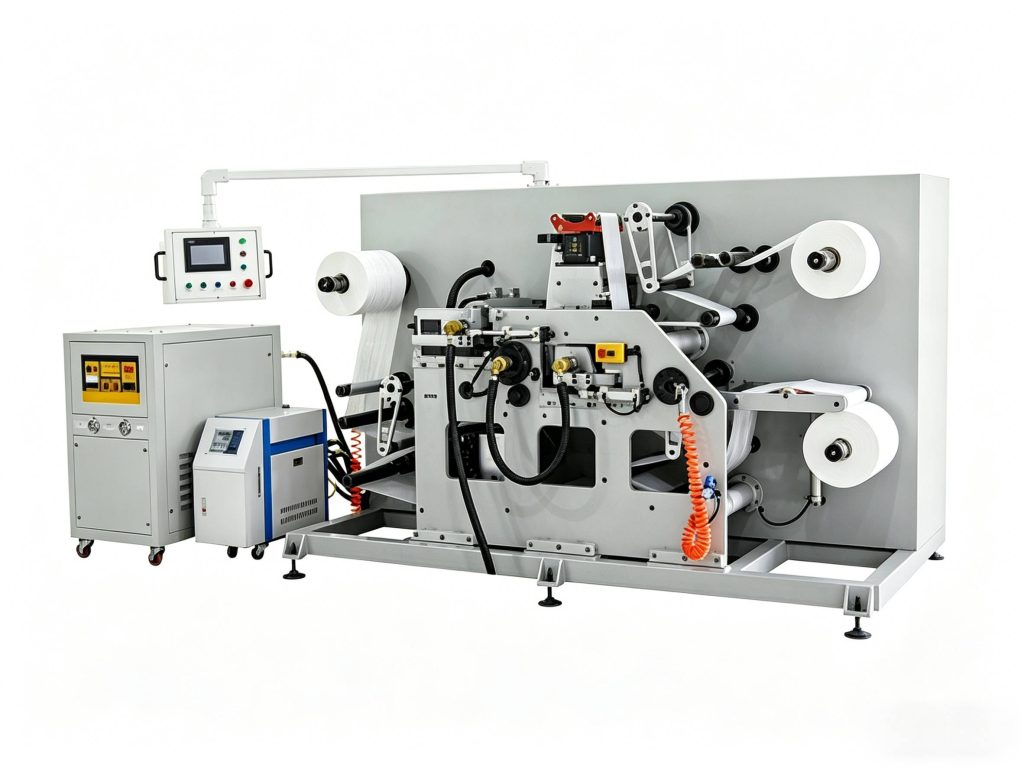

Composite Membrane Equipment

Composite Membrane Equipment is a lamination machine that bonds nonwoven fabric to PE film using hot melt adhesive or ultrasonic technology. The resulting composite material is used as the backsheet layer in premium diapers and pull-up pants, combining the waterproof barrier of PE film with the soft, cloth-like feel of nonwoven.

Nonwoven-to-Film Lamination Technology

The composite membrane lamination machine feeds nonwoven and PE film from separate unwinds, applies a precise hot melt adhesive pattern, and laminates the two webs under controlled pressure and tension. The resulting composite backsheet material can be wound onto rolls for off-line use or fed directly into an in-line diaper production process. Modern machines feature automatic web tension control, precise glue application with multi-nozzle heads, and inline inspection for lamination defects.

Machine Specifications

• Lamination width: Up to 2.4 meters
• Line speed: Up to 200 meters per minute
• Bonding methods: Hot melt spray, slot coating, or ultrasonic point bonding
• Unwind stations: 2-3 stations with automatic tension control and splice table
• Control: PLC with HMI touchscreen and recipe management
• MOQ: 1 set | Lead Time: 30-60 days

In-House Lamination Capability

Bringing lamination in-house reduces material costs and supply chain dependency. Loeon supplies composite membrane lamination machine solutions with installation, operator training, and ongoing raw material supply support. Contact us to discuss your production requirements.
